kone

Forklifts

Konecranes Intermodal Reach Stacker 5 High

Price

*

  • Heavy-duty durability
  • Eco-efficient technology
  • Maximum comfort and user friendly ergonomics
  • Smart load sensing hydraulics

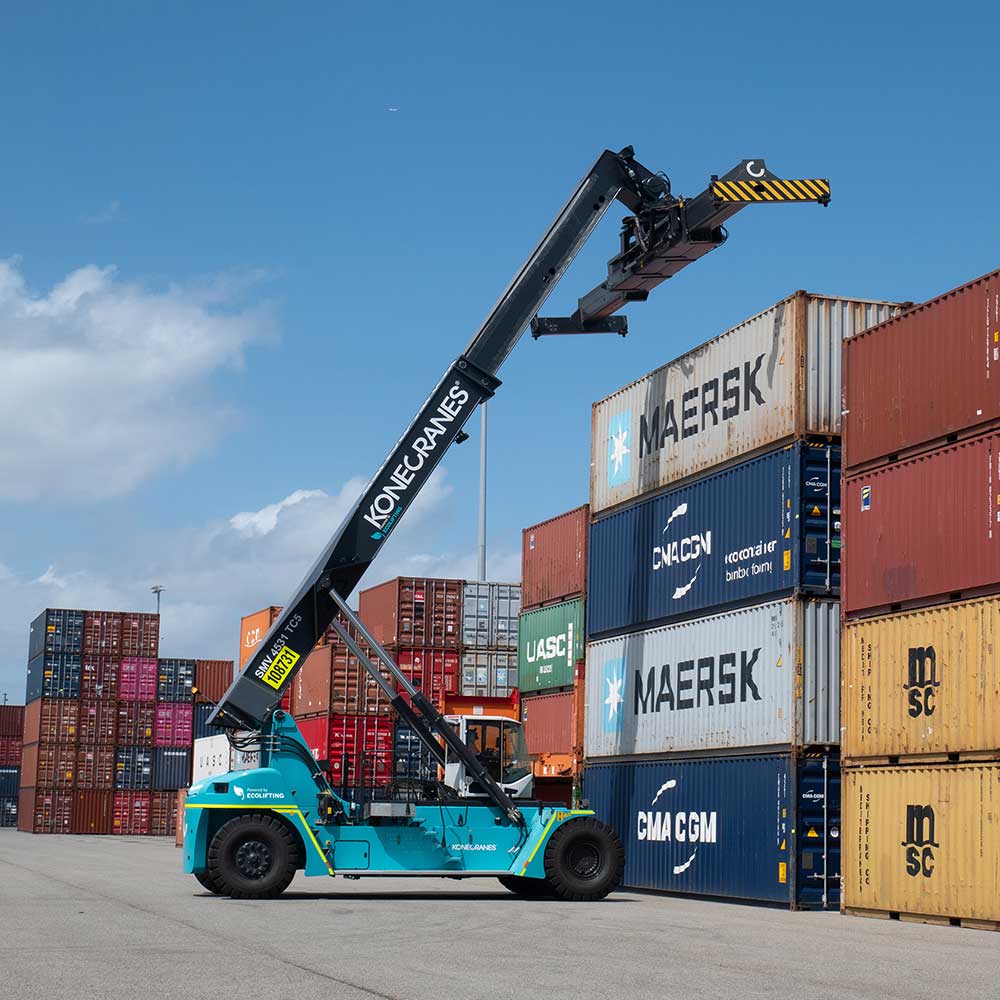

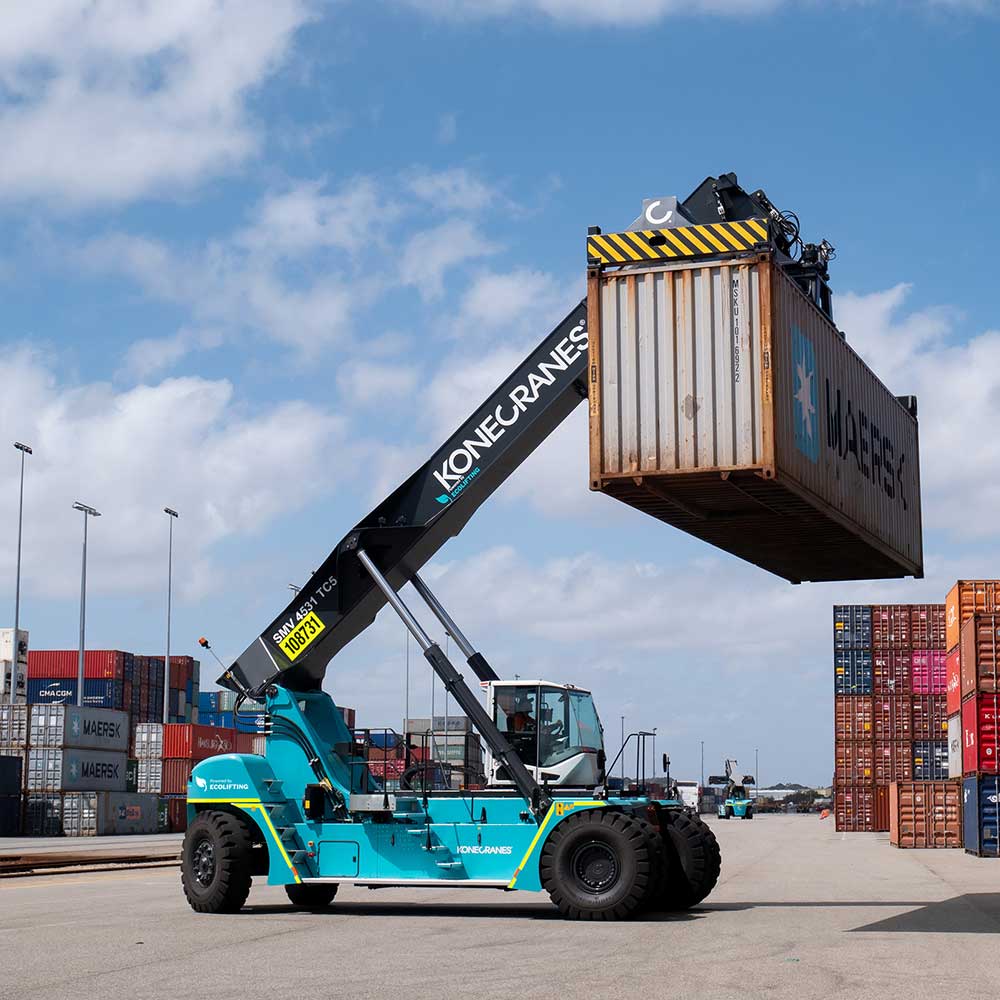

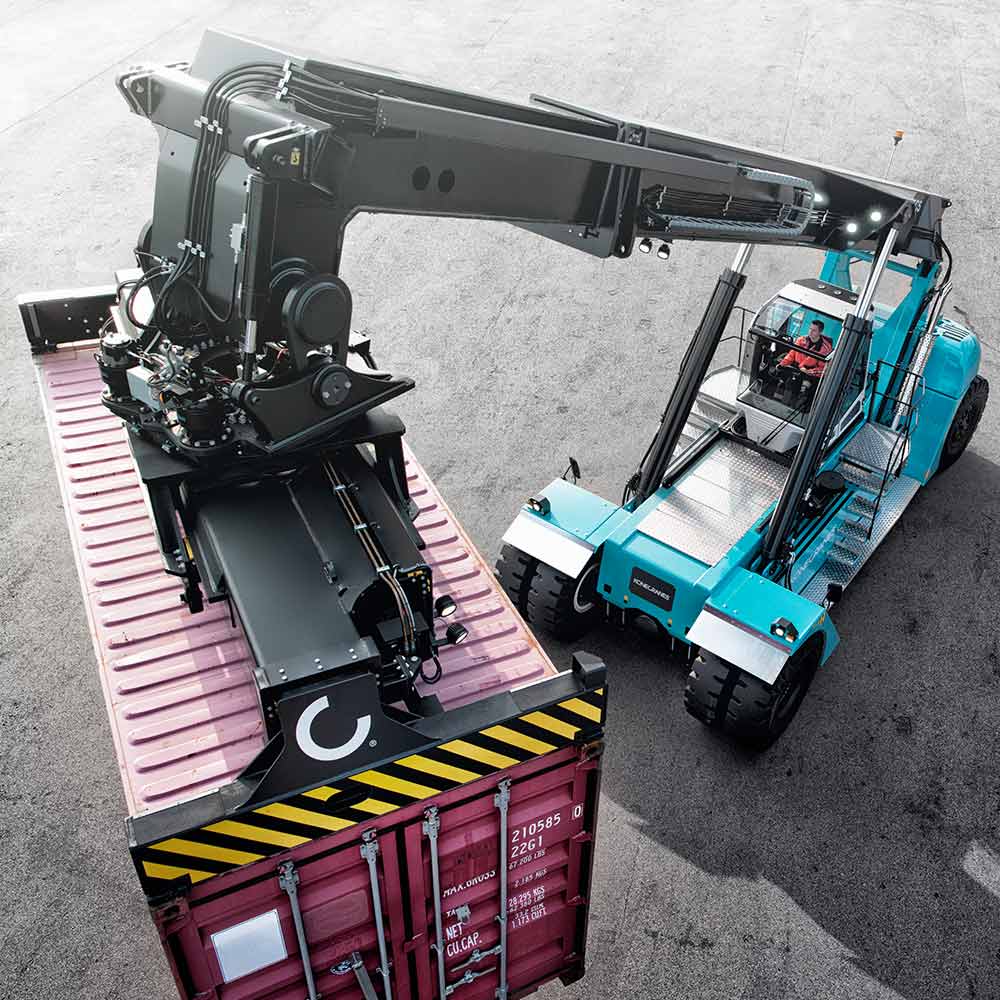

Konecranes intermodal reach stackers are supported by a powerful engine, a strong frame, coupled with load sensing hydraulics. This provides the ability to lift up to 41 tonnes, 5 containers high on the first row, and up to 9 tonnes, 3 rows deep. The durable intermodal spreader with its fold out legs also allow the reach stacker to lift fully loaded trailers from the bottom.

Read More

Konecranes intermodal reach stackers are ideal for loading and unloading across more than one track, with large lifting capacities, a long wheelbase and excellent manoeuvrability despite their large size. They can be supplied with combi attachments that enable the truck to lift containers from the top and trailers from the bottom.

These reach stackers have one of the best cabins in the market regarding space and visibility and contain smart innovative features which increase productivity and safety whilst driving down running costs. Konecranes intermodal reach stackers are ideal for many industries including container ports and terminals, steel and aluminium, transport, shipping, and logistics.

Read Less

  • Power: Diesel
  • purchase_options: New
  • Workplace: Outside
Operator Comfort
OPTIMA Cabin

The clever layout of the OPTIMA cabin offers both exceptional visibility and ergonomics. Through its large windows and spacious legroom, you can ensure high levels of comfort for the operator.

Productivity & Performance
Durable Design

Achieve a higher lifting capacity without reductions at high lift heights with the box-type chassis, one of the strongest on the market.

Flow Drive

Flow Drive provides a smooth and quiet ride using its engine re-configuration and state of the art HVT technology.

Lower Cost
Clean Power

The certified low emission engines deliver clean, efficient power to help reduce running costs.

Continuous Oil Cooling

Continuous oil cooling in the brakes provide full power in any situation. This effective cooling system ensure the brakes require less maintenance which further reduces costs.

Safety
Safety Alarm System

The Konecranes fire and suppression system provides the operator an effective safety barrier. The alarm will sound to warm the operator to vacate the reach stacker when a fire is detected.

Collision Alert

Avoid collisions with the award winning NearGuard safety system. The system provides a safer work environment by detecting obstacles using RFID technology and warning the operator with an audible alert.

Camera Systems (Optional)

Improve overall visibility for the operator by positioning magnet-mounted cameras on the reach stacker. The operator can view multiple cameras from a colour display in the cabin. More advanced Pedestrian detection systems are also available.

Safety Lighting (Optional)

Improve pedestrian safety by using safety lights to create visual exclusion zones. Blue spot warning lights can also warn pedestrians when a forklift is approaching, this can be especially useful when manoeuvring around corners.

Servicing & Maintenance
Smart Load Sensing

Reduce wear on the engine, minimise fuel consumption and environmental impact with the smart load sensing hydraulics with variable piston pumps.

Real Time Performance

The Electronic Machine Control (EMC) is an intelligent system that provides the forklift operator real-time information on the trucks performance. The dashboard screen displays full truck monitoring of the engine, transmission and hydraulics, which can help to plan maintenance and minimise downtime.

Fleet Maintenance

Truconnect

Gather real-time usage of the reach stacker when in operation. Track running times, motor starts and work cycles. Set up maintenance schedules, safety alerts, and much more.

Specifications

Konecranes Intermodal Reach Stacker

Model Capacity (t) Max Container Height Wheelbase (mm)
SMV 4123 CC5 41-23-9 5 6400
SMV 4527 CC5 45-27-13 5 6400
SMV 4531 CC5 45-31-16 5 6400
SMV 4531 CCX5* 45-33-20 5 6400
SMV 4533 CC5 45-33-16 5 6400
SMV 4533 CCX5* 45-37-24 5 6400
SMV 4537 CC5 45-37-22 5 7250
SMV 4537 CCX5 45-40-28 5 7250
SMV 4538 CC5 45-38-23 5 7250
SMV 4538 CCX5* 45-40-32 5 7250
SMV 4545 CC5 45-45-33 5 8000
SMV 4646 TCX5* 46-46-45 5 8000

*TCX models based on activated support jacks
