Haulotte Electric Scissor Lift Compact 10-12-14

Price

*

  • Drivable at full height
  • Spacious extendable platform
  • Stable, reliable access
  • High lift capacities

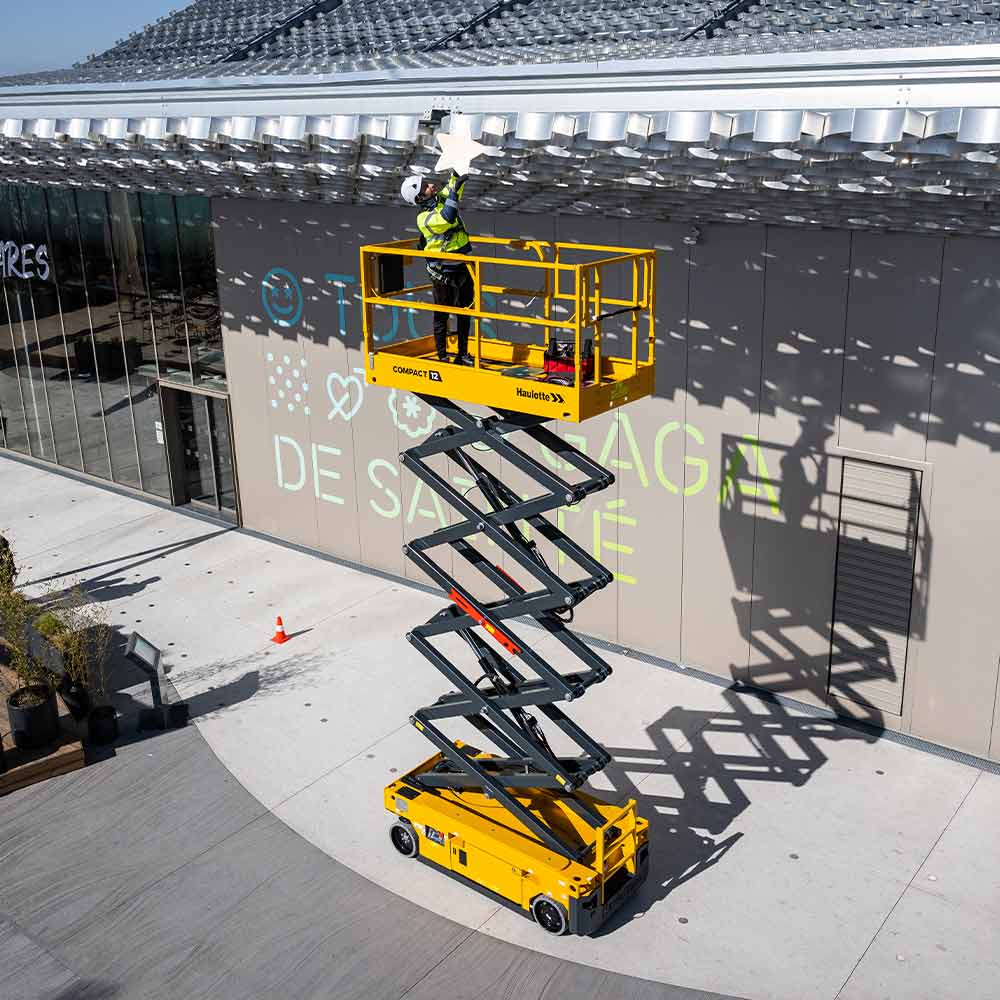

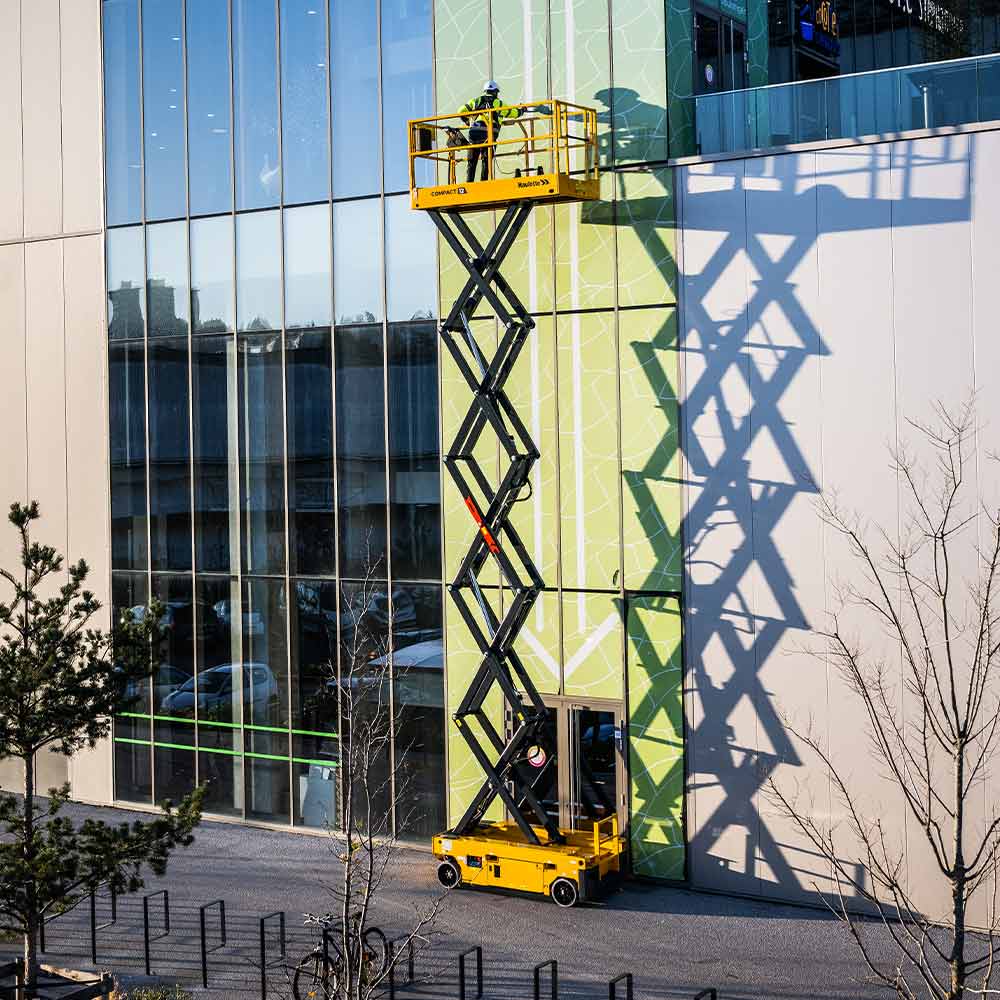

The Haulotte Compact 10, 12 and 14 are reliable, high performance scissor lifts that provide a range of features that are unmatched in their class. Ideal for both indoor and outdoor applications, these scissor lifts will provide stable, reliable access to working heights of 10 to 14 metres. The compact, robust design ensures maximum durability and performance in a wide range of environments.

Read More

The Haulotte Compact 10, 12 and 14 scissor lifts are designed to deliver optimum productivity with top standards of safety and reliability. These versatile machines offer a spacious platform of 1.17 x 2.40m, which can be increased to 1.17 x 3.32m for extra space to work. These scissor lifts come with a full range of smart features as standard, with integrated options such as working lights, power to the platform and folding guardrails for added versatility.

The Haulotte Compact 10, 12 and 14 are among the most powerful scissor lifts in their class, with a lift capacity of 450kg for the Compact 10, and 320kg for the 12 and 14, this allows up to three operators working on the platform at one time. These compact electric scissor lifts also have an added benefit of being able to drive at full height, this saves time and increases productivity.

The compact series of scissor lifts are ideal for many industries, including electrical, maintenance, signage, shed erecting, and much more.

Read Less

  • Lift Capacity (kg): 320 kg, 450 kg
  • Power: Electric
  • purchase_options: Hire, New
  • Workplace: Both
Add to Quote
Operator Comfort
Spacious Work Platform

The work platform offers 3.32 metres of length when fully extended, allowing for extra space for performing tasks or storing tools.

Smooth Movements

The scissor lifts have simple to use controls, allowing for smooth and precise manoeuvring.

Productivity and performance
Driveable Working Height

The compact scissor lifts are capable of driving while at their maximum platform height.

Deep-cycle Batteries

Accomplish a day’s work without having to worry about recharging the battery.

Battery Indicator

A battery indicator is available on the control box for peace of mind when operating.

Safety
Pothole Guards

The pothole guards can help prevent accidents that may result in injuries, as well as any damages from collisions. The automatic pothole protection system allows the scissor lift to travel over obstacles quite easily. This also means that it has no issues traveling up ramps during transport.

Automatic Protection

The emergency control button can be used to stop the lift instantly, even if it is moving.

Secure Access

The non-slip step allows for safe and quick access into the scissor lift.

Servicing and maintenance
On-board Diagnostic Tool

Thanks to the Activ’screen, you will be able to view all crucial information of the scissor lift on an LCD display.

Parts Durability

A special anticorrosion treatment has been applied to the paint, axles, rings, screws and bolts, to increase part durability. Fewer hydraulic hoses in its design also helps reduce the risk of oil leaks.

Specifications

Haulotte Electric Scissor Lift Compact 10-12-14

  Compact 10 Compact 12 Compact 14
Working height 10.0 m 11.75 m 13.75 m
Platform height 8.0 m 9.75 m 11.75 m
Max. drive working height 8.0 m 9.75 m 11.75 m
Lift capacity – inside 450 kg 320 kg 320 kg
Lift capacity – outside 450 kg 320 kg N/A
Lift capacity on the extension deck 120 kg 120 kg 120 kg
Platform length – outside 2.40 m 2.40 m 2.40 m
Platform length – extended 3.32 m 3.32 m 3.32 m
Length – extension 0.92 m 0.92 m 0.92 m
Platform width – outside 1.17 m 1.17 m 1.17 m
Height – stowed 2.35 m 2.47 m 2.72 m
Guardrails lowered 1.65 m 1.77 m 2.02 m
Overall width 1.20 m 1.20 m 1.20 m
Length 2.50 m 2.50 m 1.86 m
Ground clearance – deployed potholes 2.0 cm 2.0 cm 2.0 cm
Drive speed 0.7 / 1.5 / 4.2 km /h 0.7 / 1.5 / 4.2 km /h 0.7 / 1.5 / 4.2 km /h
Gradeability 25 % 25 % 25 %
Tilt (longitudinal / lateral) 3.5 ° / 1.5 ° 3.5 ° / 1.5 ° 3.5 ° / 1.5 °
Turning radius – outside 1.83 m 1.83 m 1.83 m
Non-marking tyres 15 x 5 15 x 5 15 x 5
Batteries 24 V – 225 Ah (C20) 24 V – 225 Ah (C20) 24 V – 225 Ah (C20)
Hydraulic system capacity 10 L 14 L 14 L
Weight 2490 kg 2490 kg 3070 kg



Standard Equipment
Haulotte Activ’Energy Management: Smart CAN charger
27A multi voltage charger
Battery access with swing out tray
Battery level indicator
Haulotte Activ’Screen (battery charge information, hour meter, service alerts & failures in code or in text…)
Lateral & longitudinal forklift pockets
Foldable guardrails
Front platform extension
AC motors
Mobile upper control box
2 drive speeds selector
Manual emergency descent
Mobile pothole guards
MyHaulotte multi-services portal access
2 front steering wheels, 2 rear drive wheels
Solid non marking tires
Motion alarm
Electric brake release system
Drop bar entry



Options & Accessories
Haulotte Activ’Energy Management: automatic or manual battery water filling systems
AGM maintenance-free batteries
Secondary guarding system
Telematics solutions
Pipe cradle
Swing gate entry
Additional protection of upper & lower control box
Basket plug (110 / 230 V)
Working light
Flashing light (single, dual or 360°)
Biodegradable hydraulic oil
Cold weather hydraulic oil
