Elevah Stock Picker 65 Move Picking
Price
*
- Double picking platform
- Optimal comfort and safety
- 1 metre a second driving speed
- Compact width of 78cm

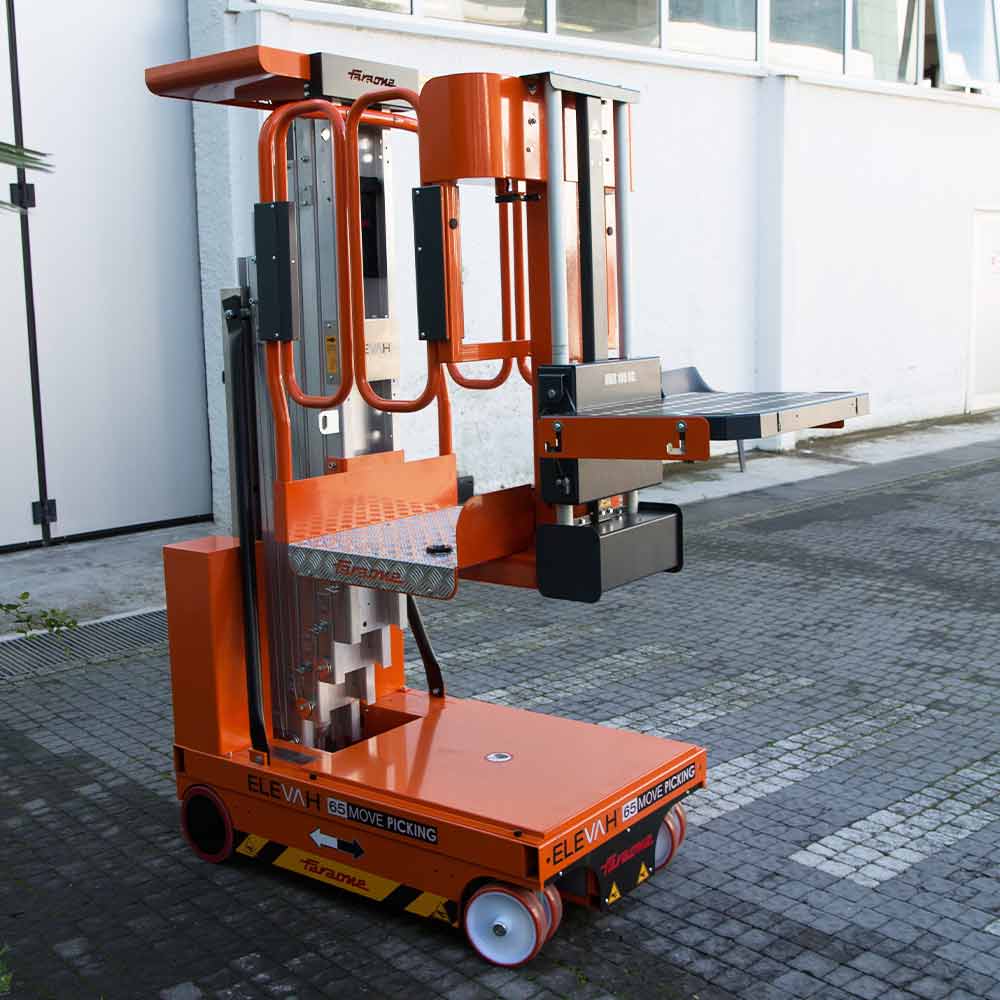

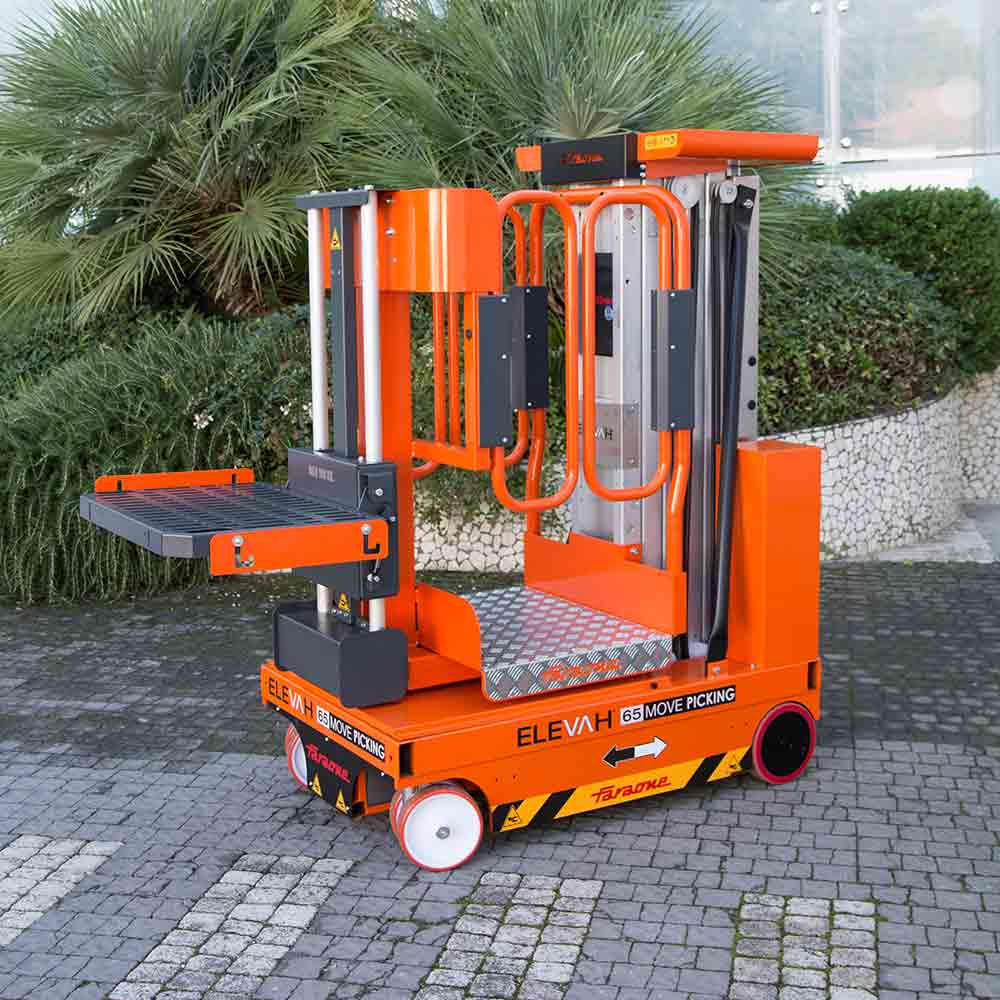

The Elevah 65 Move Picking stock picker is the ideal self-propelled platform for high stock picking applications. Its 6.50 metre working height offers the best lift height in its class compared to other products in the market.
Read More
This makes the 65 Move Picking highly suitable for high warehouse racking and store shelving, which helps businesses to save space and reduce costs. The stock picker provides a quick one metre a second driving speed and excellent manoeuvrability with its tight turning circle and joystick control. Driveable at full height, its compact width of 78cm further allows the 65 Move Picking to access tight areas and standard doorways.
The platform includes two picking trays which allows the operator to carry more products at the same time. The main tray has a lifting capacity of 100kg, and the height can be adjusted to stack on more products. The smaller tray has a 20kg lift capacity which is perfect for holding smaller parts and products. Included features like the foot pressure switch adds further safety by disabling movement of the machine if the operator is not standing correctly on the platform. The 65 Move Picking is a very versatile stocker picker suited for many applications including retail, hardware, warehousing, automotive, hospitals and much more.
Read Less
- Lift Capacity (kg): 200 kg
- Power: Electric
- Workplace: Both
Specifications
Elevah Stock Picker 65 Move Picking
| 65 Move Picking | |
| Max working height | 6.50 m |
| Max lift capacity | 200 kg |
| Workplace | Internal and external |
| Closed machine height | 1720 mm |
| Minimum platform height | 460 mm |
| Maximum platform height | 4700 mm |
| Base overall dimensions | 1280 x 1780 x 780 mm |
| Cage dimensions | 640 x 710 mm |
| Machine weight | 830 kg |
| Fixed picking tray dimensions | 440 x 740 mm |
| Fixed picking tray capacity | 20 kg |
| Driving wheels size | 220 x 65 mm |
| Idle rear wheels size | 200 x 50 mm |
| Picking Platform | |
| Adjustment | Electric |
| Stroke | 600 mm |
| Min. height from the ground | 820 mm |
| Max. height from the ground | 5650 mm |
| Dimensions | 500 mm, 680 mm |
| Capacity | 100 kg |
| Performance | |
| Power supply | 24V |
| Batteries | Lead Acid Batteries 12V 105 Ah |
| Battery charger | 110 V – 220 V |
| Maximum climbing ability | 15 % |
| Climbing ability at height | 2.5 % |
| Internal turning radius | 0 |
| External turning radius | 1095 mm |
| Max. speed (rising – descending) | 0.2 m / s |
| Maximum speed (with basket on the ground) | 5 km / h |
| Maximum pressure for wheel at full load | 3.6 kN |
| Work cycles (with fresh batteries) ** | Ca. 130 |
