Access Equipment
Athena Bi-levelling Tracked Scissor Lift 850
Price
*
- 2017 “Safety Solution of the Year” Winner at Manufacturers Monthly Endeavour Awards
- 2016 HRIA & IAPA Best New Access Product Winner
- Ideal for all types of terrain
- Bi-levelling feature can safely level platform on steep slopes

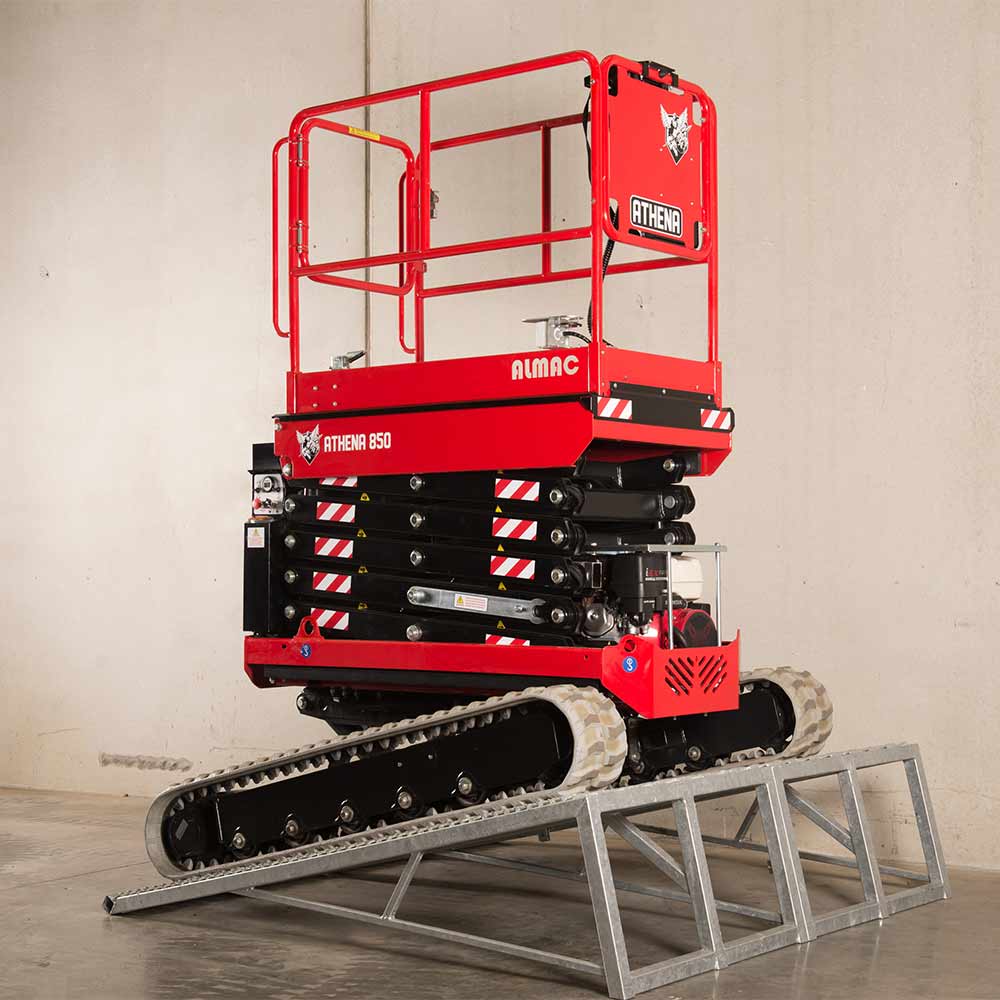

The Athena 850 bi-levelling tracked scissor lift is the world’s most versatile scissor lift. Its unique bi-levelling tracked undercarriage provides the ability to safely manoeuvre and work on the most difficult terrain. This includes the ability to automatically level on slopes up to 20 degrees in tight access situations. Intelligent monitoring systems coupled with state-of-the-art engineering come together to maximise its productivity and do the job other scissor lifts cannot.
Read More
This Athena 850 scissor lift offers a 7.9 metre working height and 250 kg lift capacity. Available in three models, the 850 BL, which boasts a Diesel Hatz 1b40 engine. The 850 EVO, powered by a diesel Kubota Z482 engine, and the 850 Bi Energy, equipped with a Diesel Hatz 1b40 and a lithium-ion power pack.
Design features include power to the platform which allow operators to use power tools freely when working at height. The Athena bi-levelling scissor lift is ideal for many applications including construction, signage, electrical, painting, facility maintenance, agriculture and much more.
Read Less
- Lift Capacity (kg): 250 kg
- Power: Diesel, Hybrid
- Workplace: Both
Specifications
Athena Bi-levelling Tracked Scissor Lift 850
| 850 BL | 850 EVO | 850 BI-ENERGY | |
| Basket capacity | 250 kg (2 op.) | 250 kg (2 op.) | 250 kg (2 op.) |
| Max working height | 7.9 m | 7.9 m | 7.9 m |
| Max height basket floor | 5.9 m | 5.9 m | 5.9 m |
| Moving height | 6.1 m | 6.1 m | 6.1 m |
| Lateral levelling for moving at heights | + / – 4° | Dynamic Drive System | Dynamic Drive System |
| Powered Standard | Diesel Hatz 1B40 | Diesel Kubota Z482 | Lithium-Ion Power Pack / Diesel Hatz 1B40 |
| Accelerator | Automatic | Automatic | – |
| Undercarriage | Bi-levelling | Bi-levelling | Bi-levelling |
| Basket levelling | Automatic | Automatic | Automatic |
| Longitudinal levelling front | + / – 16° | + / – 16° | + / – 16° |
| Longitudinal levelling rear | + / – 20° | + / – 20° | + / – 20° |
| Lateral levelling | + / – 15° | + / – 15° | + / – 15° |
| Power generator (option) | 220V – 1kW | 220V – 1kW | – |
| Electric motor (option) | 220V – 1kW | 220V – 1kW | – |
| Hydraulic commands | Proportionals | Proportionals | Proportionals |
| Direction-control system | Yes | Yes | Yes |
| Easy-drive system | Yes | Yes | Yes |
| Dynamic Levelling System | – | Yes | Yes |
| Pro-Active Levelling System | – | Yes | Yes |
| Kit for high speed | Max 2.20 km/h | Max 2.20 km/h | Max 1.80 km/h |
| Ground emergency | Yes | Yes | Yes |
| Control of inclination | Automatic | Automatic | Automatic |
| Gradeability | 25° | 25° | 25° |
